Cosmic Rays and Particle Detectors

Cosmic Rays

What are Cosmic Rays?

Did you know that right this second, invisible particles from outer space are zooming through your body at nearly the speed of light? These cosmic rays are like tiny space bullets, blasting through the Earth from exploding stars, black holes, and distant galaxies - and scientists have found amazing ways to catch them in action!

These high-energy particles come from all sorts of exciting cosmic sources, including supernovas, active galaxies, and even our own Sun!

Types of Cosmic Rays

The word ray is a bit misleading. At first, scientists thought cosmic rays were mostly electromagnetic radiation, like light. But they later found out these "rays" are actually tiny particles!

  • Primary cosmic rays: These are particles from outer space. Almost all of these particles are the nuclei of atoms, mainly protons. The rest are electrons.

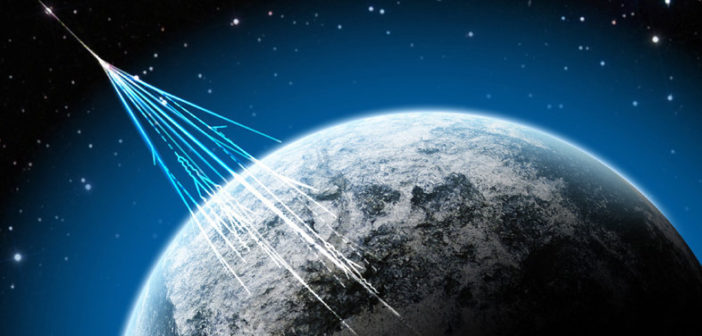

  • Secondary cosmic rays: These are created when primary rays hit the atmosphere and collide with other particles in the atmosphere. When primary cosmic rays collide with other particles, they can split the molecules and form secondary cosmic ray particles.

Are Cosmic Rays Dangerous?

With cosmic rays blasting us every day, you may wonder if they are dangerous to us. Luckily, there is no need for worry. Cosmic rays are part of the naturally occurring radiation that we receive every day. Earth's atmosphere absorbs most of cosmic rays, with only a small fraction reaching us on the ground.

Also, our body's natural processes can identify and correct damage caused by radiation.

However, if we were on a long flight to another planet, Mars for example, we wouldn't have the atmosphere or Earth's magnetic field to protect us. The radiation dose from cosmic rays would be a serious issue!

Detecting the Invisible

How do scientists detect these invisible visitors from space? It's like trying to catch ghosts - you need some pretty clever tricks!

  • Cloud Chambers: One of the coolest ways to see cosmic rays is with a cloud chamber, which works like a detective's fingerprint kit for particles. Scientists fill a container with alcohol vapor that's super-cooled and ready to condense. When a cosmic ray zips through, it leaves behind a trail of tiny droplets - like a vapor trail from a jet plane, but much smaller! You can actually see these white streaks appearing out of nowhere as the particles race through the chamber. It's like watching invisible bullets leave their tracks in fog!
  • Scintillation Detectors: Another type of detector contains special materials that literally light up when hit by high-energy particles. When a cosmic ray strikes, the material produces a tiny flash of light that sensitive cameras can detect. It's similar to how glow-in-the-dark stickers work, but much faster - each flash lasts only a few billionths of a second! Scientists can count these flashes to measure how many cosmic rays are hitting the detector.
  • Your Smartphone: Here's something amazing - your phone's camera can actually detect cosmic rays! The same sensor that takes pictures can catch these space particles when they hit it. If you cover your phone's camera completely with tape (so no light gets in) and record a video in a dark room, some of the tiny white dots you see might be cosmic rays hitting your camera sensor! It's like your phone becomes a mini space weather station.

Mind-Blowing Cosmic Ray Facts

  • Energy: The most energetic cosmic rays carry as much energy as a 60 mile per hour baseball. This may not seem like much, but all of this energy is concentrated in a single atomic nucleus!
  • Danger to Electronics: Cosmic rays can flip bits in computer memory, causing random errors in electronics
  • Radiation: High-altitude pilots and flight attendants receive more cosmic ray radiation than nuclear power plant workers
  • Carbon Dating: Cosmic rays help create carbon-14, which scientists use to date ancient artifacts
  • Age: Some cosmic rays have traveled for millions of years to reach Earth from distant galaxies. The cosmic ray that hit you while reading this sentence might have come from a star that exploded before Earth even existed!
  • Detectors: Scientists have built cosmic ray detectors underwater, underground, and even in the Antarctic ice

Cosmic Rays in Thunder Cloud Summer

In our story, Professor Shug's cosmic ray detectors play a crucial role in the adventure:

  • Supernova connection: The exploding star sends a shower of high-energy particles toward Earth
  • Enhanced detection: The professor's advanced detectors pick up unusual cosmic ray activity
  • Portal formation: The cosmic rays somehow interact with Earth's magnetic field to open the doorway
  • Ben's detector: The "magic wand" is actually a sophisticated cosmic ray detector that responds to these particles

Also, Professor Shug's work mirrors real cosmic ray research:

  • Detection networks: Real scientists use arrays of detectors spread across large areas, just like Professor Shug sets up multiple instruments
  • Supernova connections: Supernovas are indeed major sources of cosmic rays, and scientists study them to understand these explosions
  • Unusual events: When cosmic ray detectors pick up strange signals, it often leads to new discoveries about space
  • Technology applications: Cosmic ray detection has led to advances in particle physics, medical imaging, and even archaeology

Try it Yourself!

1. Smartphone Cosmic Ray Detector

Materials:
  • Smartphone with camera
  • Black electrical tape
  • Completely dark room
  • Timer or stopwatch
  • Notebook for recording
Instructions:
  1. Cover your phone's camera lens completely with black tape (no light should get through)
  2. Open your camera app and set it to video mode
  3. In a completely dark room, start recording for 10 minutes
  4. Keep the phone still and don't touch the screen
  5. Watch the video afterward - count small white dots or streaks that appear randomly
  6. Some of these flashes might be cosmic rays hitting your camera sensor!
What You're Seeing:

Not every dot is a cosmic ray - some are electronic noise or thermal effects. But cosmic rays do create distinctive small bright spots that appear randomly across your sensor. Real cosmic ray detectors use this same principle but with much more sensitive equipment!

Note: This works best with older phones or tablets. Some newer cameras have filters that block cosmic rays.

2. Build a Simple Cloud Chamber

Materials:
  • Clear plastic container with tight lid
  • Black felt or paper
  • Isopropyl alcohol (91% or higher)
  • Dry ice (adult supervision required)
  • Bright LED flashlight
  • Insulated gloves
Instructions:
  1. Line the bottom of the container with black felt
  2. Soak the felt with isopropyl alcohol
  3. With adult help, place small pieces of dry ice on the bottom
  4. Quickly seal the container - alcohol vapor will form
  5. Shine the LED light from the side
  6. Look for thin white streaks appearing randomly - these are particle tracks!
What You're Seeing:

The streaks are trails of condensed alcohol vapor where charged particles have passed through. Most tracks are from natural radioactivity, but some of the longer, straighter tracks might be cosmic rays!

Samantha's Cloud Chamber

At this site (https://www.instructables.com/How-to-make-a-Cloud-Chamber-Cosmic-Ray-Detector/ ) 6-year old Samantha shows how she built a Cloud Chamber!

Safety First: Dry ice is extremely cold (-78°C). Adult supervision is required. Use insulated gloves and work in a well-ventilated area.
